Copying a Disc Label

This section describes how to copy the label of an existing disc (BD/DVD/CD, etc.) and print it onto a printable disc.

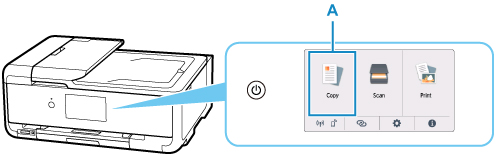

  1. Select Copy (A) on the HOME screen.

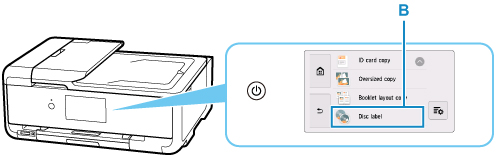

  2. Select Disc label (B).

  3. Check message and select OK.

  4. Specify the print area of the printable disc as necessary.

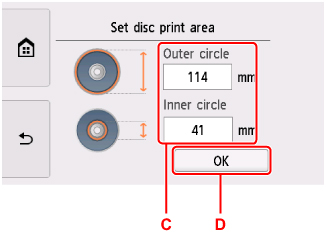

    Select Outer circle or Inner circle (C), specify the print area, then select OK (D).

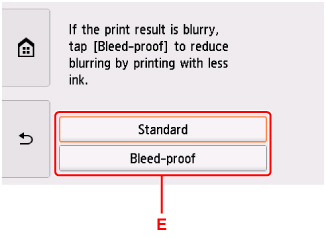

  5. Specify the amount of ink (E).

    If the print result is blurry, select Bleed-proof. Blurring may be reduced by printing with less ink.

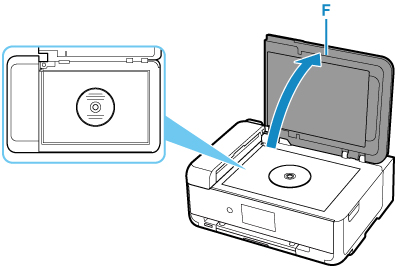

  6. Open the document cover (F).

  7. Load copy source (BD/DVD/CD, etc.) WITH ITS LABEL SIDE DOWN on platen.

  8. Close the document cover.

  9. Select OK on the touch screen.

  10. Open operation panel (G) until horizontal.

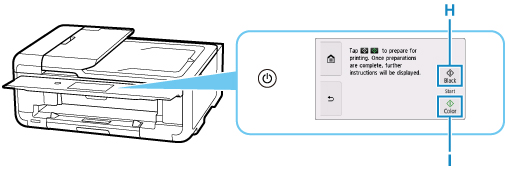

  11. Tap Black (H) or Color (I).

    A message prompting you to load the printable disc is displayed.

  12. Remove cassette from printer and then detach multi-purpose tray from back of cassette.

    Insert the removed cassette back into the printer.

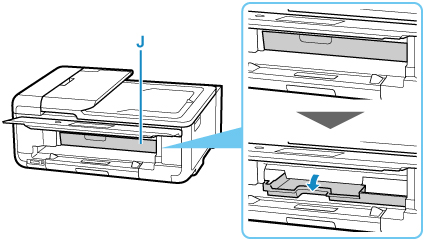

  13. Open multi-purpose tray guide (J) and completely press it down.

  14. Place printable disc on multi-purpose tray.

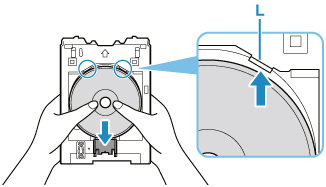

    1. WITH PRINT SIDE FACING UP, place printable disc, and press it against lock (K) at bottom.

    2. While pressing down lock with printable disc, insert top of printable disc into slits (L).

  15. Place multi-purpose tray on multi-purpose tray guide.

  16. Insert multi-purpose tray straight in in horizontal direction until arrow () on multi-purpose tray guide is approximately aligned with arrow () on multi-purpose tray.

  17. Select OK on the touch screen.

    The multi-purpose tray is drawn into the printer and copying will start.

    Important

    • Do not open the document cover until copying is complete.

  18. After copying is complete, pull multi-purpose tray from printer to remove it.

  19. While pressing down lock (K), take out printable disc from slits (L) on multi-purpose tray, and remove it.

Note
